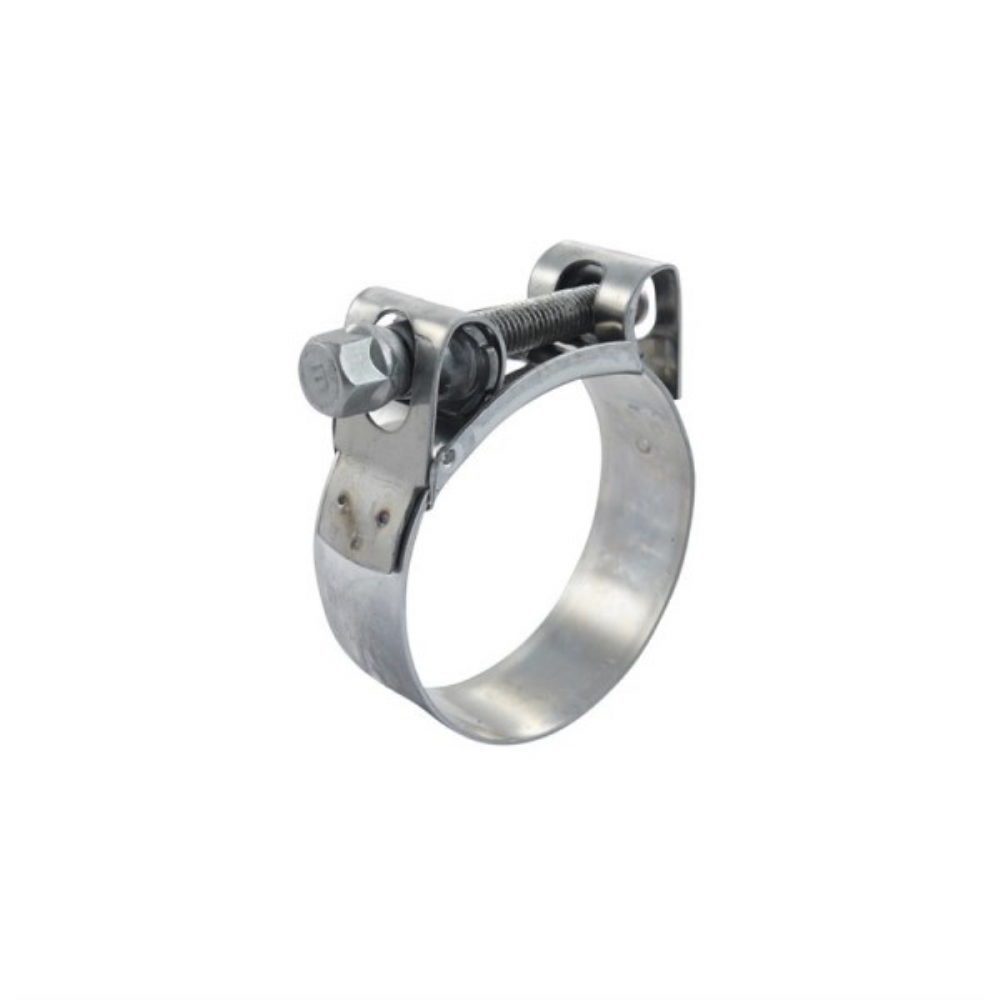

ΣΦΙΚΤΗΡΑΣ ΣΩΛΗΝΑ ΒΑΡΕΟΥ ΤΥΠΟΥ A4-AISI 316 & A2-AISI 304

Διαθέσιμο σε :

For hose-Ø 17-19*B 18*Max. torque 10Nm*Max. pressure 40Bar*Drive SW8

For hose-Ø 19-21*B 18*Max. torque 10Nm*Max. pressure 40Bar*Drive SW8

For hose-Ø 21-23*B 18*Max. torque 10Nm*Max. pressure 40Bar*Drive SW8

For hose-Ø 23-25*B 18*Max. torque 10Nm*Max. pressure 40Bar*Drive SW8

For hose-Ø 25-27*B 18*Max. torque 10Nm*Max. pressure 40Bar*Drive SW8

For hose-Ø 27-29*B 18*Max. torque 10Nm*Max. pressure 40Bar*Drive SW8

For hose-Ø 29-31*B 20*Max. torque 12Nm*Max. pressure 35Bar*Drive SW11

For hose-Ø 31-34*B 20*Max. torque 12Nm*Max. pressure 35Bar*Drive SW11

For hose-Ø 34-37*B 20*Max. torque 12Nm*Max. pressure 35Bar*Drive SW11

For hose-Ø 37-40*B 20*Max. torque 12Nm*Max. pressure 35Bar*Drive SW11

For hose-Ø 40-43*B 20*Max. torque 12Nm*Max. pressure 35Bar*Drive SW11

For hose-Ø 43-47*B 20*Max. torque 12Nm*Max. pressure 35Bar*Drive SW11

For hose-Ø 47-51*B 20*Max. torque 16Nm*Max. pressure 30Bar*Drive SW11

For hose-Ø 51-55*B 20*Max. torque 16Nm*Max. pressure 30Bar*Drive SW11

For hose-Ø 55-59*B 20*Max. torque 16Nm*Max. pressure 30Bar*Drive SW11

For hose-Ø 59-63*B 20*Max. torque 16Nm*Max. pressure 30Bar*Drive SW11

For hose-Ø 63-68*B 20*Max. torque 16Nm*Max. pressure 30Bar*Drive SW11

For hose-Ø 68-73*B 25*Max. torque 30Nm*Max. pressure 20Bar*Drive SW13

For hose-Ø 73-79*B 25*Max. torque 30Nm*Max. pressure 20Bar*Drive SW13

For hose-Ø 79-85*B 25*Max. torque 30Nm*Max. pressure 20Bar*Drive SW13

For hose-Ø 85-91*B 25*Max. torque 30Nm*Max. pressure 15Bar*Drive SW13

For hose-Ø 91-97*B 25*Max. torque 30Nm*Max. pressure 15Bar*Drive SW13

For hose-Ø 97-104*B 25*Max. torque 30Nm*Max. pressure 15Bar*Drive SW13

For hose-Ø 104-112*B 25*Max. torque 30Nm*Max. pressure 10Bar*Drive SW13

For hose-Ø 112-121*B 25*Max. torque 30Nm*Max. pressure 10Bar*Drive SW13

For hose-Ø 121-130*B 25*Max. torque 30Nm*Max. pressure 10Bar*Drive SW13

For hose-Ø 130-140*B 28*Max. torque 45Nm*Max. pressure 6Bar*Drive SW15

For hose-Ø 140-150*B 28*Max. torque 45Nm*Max. pressure 6Bar*Drive SW15

For hose-Ø 150-162*B 28*Max. torque 45Nm*Max. pressure 6Bar*Drive SW15

For hose-Ø 162-174*B 28*Max. torque 45Nm*Max. pressure 3Bar*Drive SW15

For hose-Ø 174-187*B 28*Max. torque 45Nm*Max. pressure 3Bar*Drive SW15

For hose-Ø 187-200*B 28*Max. torque 45Nm*Max. pressure 3Bar*Drive SW15

For hose-Ø 200-213*B 28*Max. torque 45Nm*Max. pressure 3Bar*Drive SW15

For hose-Ø 213-226*B 28*Max. torque 45Nm*Max. pressure 3Bar*Drive SW15

For hose-Ø 226-239*B 28*Max. torque 45Nm*Max. pressure 3Bar*Drive SW15

For hose-Ø 239-252*B 28*Max. torque 45Nm*Max. pressure 3Bar*Drive SW15
